Grid Pad 10s

Product Description
Maximum quantity available reached.

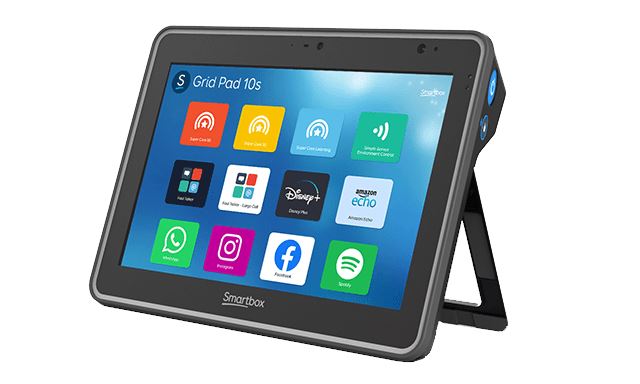

A next generation dedicated, multi-access AAC device designed for performance and durability.

Each feature of the new Grid Pad 10 has been carefully considered and the highest quality components used throughout.

With a daylight-ready antiglare display, enhanced 2nd screen features, new accessible remote power button, and high-quality audio, the Grid Pad 10 is engineered for independence indoors and out.


Detailed Features


New Remote power button

A boon for independence, with two switch ports the Accessible Remote Power Button users can turn on their Grid Pad 10s on and off remotely. As soon as a user wakes up in the morning , they can wake up their Grid Pad.  The Remote Power Button as a wireless switch transmitter.

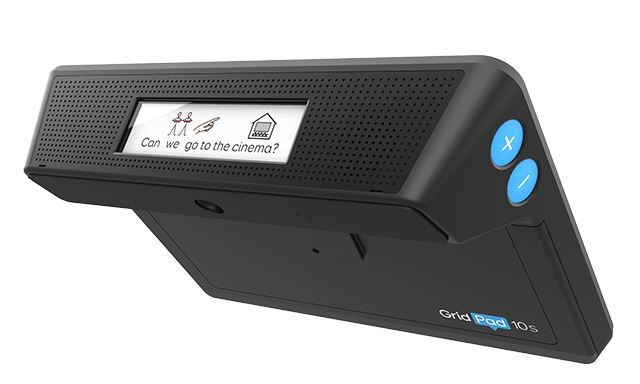

Brand-new Second screen features

Two exciting second screen features help you get your message across in new ways.

Symoji - Quickly communicate using an animated character to add meaning or emotion to your communication, with just a single selection.

Symbolised messages - Perfect for communicating with someone who benefits from symbols to support their understanding of language.



Powered by Grid 3

The software for communication includes a wide range of AAC resources, designed for people of all ages with different levels of communication abilities.

With dedicated apps for communicating, controlling your environment, message banking, browsing the internet, using social media, sending emails and text messages, listening to music and more. You’ll find a wide range of AAC resources, designed for people of all ages and different levels of literacy.



Multi-access device

Interact with Grid Pad 10s in so many ways:

  • A touch screen for which you can get standard or custom keyguards
  • Two switch ports
  • Two reinforced USB ports for joysticks, external keyboards etc.
  • Dedicated audio port for headphone and mic .

Bluetooth ready too, for wireless switches, pointers, headphones and more.


High Performance computing

Grid Pad 10s has a Intel i5 processor, 8GB of RAM and a 256 GB SSD hard drive – perfect for getting your message across quickly and doing everything you want in the Grid: writing, studying, shopping, streaming the latest movie and so much more.

Versatile Positioning

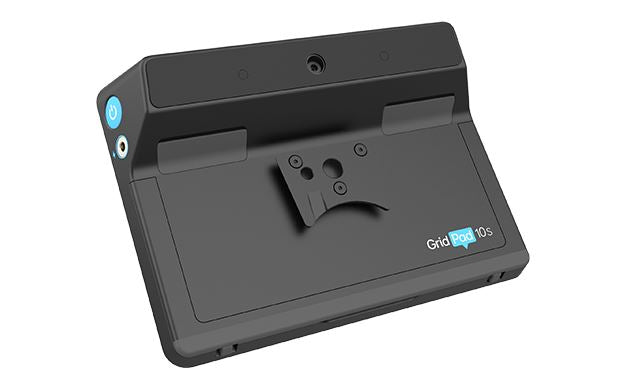

Mount the Grid Pad 10 to a wheelchair, floor or desk stand with the dual mounting plate: for Daessy and Rehadapt mounts in one plate. Position to virtually any angle on a desk with the adjustable flip out stand, plus there’s also a shoulder strap for easy .


Build-in Environment control

GEWA Infrared Environment Control for operating devices around your home, like your TV, audio system and other remote-controlled gadgets.

The front facing IR learning window provides ease of programming, and the multi-directional infrared LEDs give you a powerful 10m range signal.



Tough magnesium chasis

An impact resistant magnesium-alloy chassis makes the case incredibly strong, protecting it from everyday knocks and bumps. The chassis also provides significant thermal conductivity – removing heat from the processor without the need for any fans or openings, making the device water and dust resistant (IP54 rated).


Extra Strong ports

Reinforced ports rubber bungs have been used throughout for extra protection. All internal components are carefully secured eliminating movement inside the device.  Not only doe it make the Grid Pad 10’s shock-proof but it ensures the best quality audio possible.


Durable daylight bright display

The daylight bright display is made with toughened industrial grade glass, protecting it against impacts and scratches.

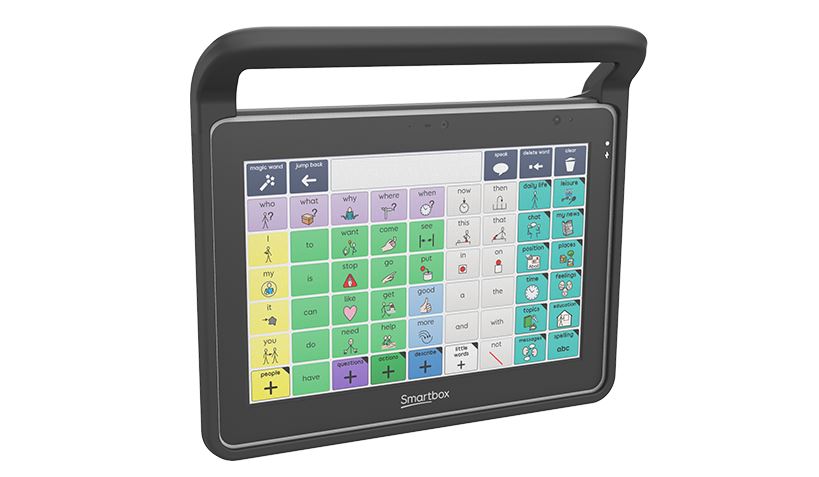

Optional touch case

Grid Pad 10s is available with a tough case as an optional extra. The moulded plastic provides additional impact and shock protection.

Plus the ergonomic handle offers users an easy way to carry their Grid Pad without obscuring the second screen.

Technical Specifications


  • Operating system - Windows 10 Pro
  • Software - Grid 3
  • Processor - Intel® Core™ i5-7Y54, 1.2GHz Base, 3.2GHz Turbo
  • Memory / RAM - 8GB
  • Hard drive - 256GB SSD
  • Display - 10.1” 1920 x 1200 daylight bright display with toughened glass and anti-glare finish, 650 NITS brightness
  • Second screen - 3.9” 480 x 128 second screen with toughened glass and anti-glare finish
  • Weight - 1.45kg (1.5kg with mounting plate) / 3.2lb (3.3lb with mounting plate)
  • Battery life - 7 hours typical use
  • Tablet camera - 2MP front, 5MP rear
  • Dimensions - 260 x 189 x 60 mm
  • Access - 2 x 3.5mm switch ports, 2 x USB 3.0 port, 3.5mm headphone port, touch screen
  • Environment control - GEWA Infrared
  • Connectivity - Dual band wireless (AC 8265), Bluetooth 4.2 LE
  • Mounting plate - Daessy and Rehadapt
  • Other features - Antimicrobial case and screen, drop tested to 1m, shoulder strap, flip-out stand and remote power button (with wireless switch access
Sku: 24GP10S
Vendor: Smartbox
